Brand Name:Tulun Play
Origin:CN(Origin)
Model Number:MA5.6K
Bundle:Bundle 1
Type:Power Amplifiers
Certification:CE
Stereo RMS Power at 8ohms:1400Watts*2
Size:48.5cm(L)x25.5cm(W)x8.9cm(H)
warranty:3 years
voltage:90-264V
Type:Professional Power Amplifier
gross weight:9.5Kg
Bridge Power at 4ohms:5600W
2-Channel Power Amplifier for High-Performance Portable Sound Systems and Touring
- Small to medium-scale touring systems, FOH
- Small-scale subwoofers
- Full-range loudspeakers
- Stage monitoring for
Concert halls
Live clubs
Corporate events
|
Number of Channel |
2 |
||||
|
Output power |
Single channel mode |
Bridge mode |
|||
|
|
2 Ω |
4 Ω |
8Ω |
4 Ω |
8 Ω |
|
|
2800 W |
2600 W |
1400 W |
5600 W |
5200 W |
|
Power supply |
Universal, regulated switch mode with PFC (Power Factor Correction) |
||||
|
Nominal power requirement |
100-240 V ±10%, 50-60 Hz |
||||
|
Operating voltage |
90 V - 264 V |
||||
|
Power consuption |
115V |
230V |
|
||
|
Idle |
64 W |
1.12A |
75W |
1.3A |
|
|
1/8 of max output power @ 4 Ω |
813W |
8 A |
813W |
4A |
|
|
1/4 of max output power @ 4 Ω |
1625 W |
14.8A |
1625W |
7.4A |
|
|
Operating temperature range |
0° - 45° C - 32° - 113° F |
||||
|
Frequency response |
20 Hz - 20 kHz (±0.5 dB) @ 1 W, 8 Ω |
||||
|
S/N ratio |
> 110 dB (20 Hz - 20 kHz, A weighted) |
||||
|
Crosstalk separation |
> 66 dB @ 1kHz |
||||
|
THD+N |
< 0.3% from 1 W to full power (typically < 0.05%) |
||||
|
IMD |
< 0.3% from 1 W to full power (typically |
||||
|
Input impedance |
10 kΩ balanced |
||||
|
Slew rate |
50 V/μs @ 8Ω, input filter bypassed |
||||
|
Damping factor |
> 5000 @ 20-200 Hz |
||||
|
DSP architecture |
Analog Devices SHARC DSP |
||||
|
AD Converter |
Dual 24 bit 96 kHz Tandem® architecture with 127 dBA of dynamic range and THD |
||||
|
DA Converter |
Dual 24 bit 96 kHz Tandem® architecture with 122 dBA of dynamic range and THD |
||||
|
Internal precision |
40 bit floating point |
||||
|
Firmware |
Network upgradable firmware |
||||
|
Memory/presets |
8 MB (RAM) plus 2 MB flash for presets / 50 stored locally + 150 stored on Smart Card |
||||
|
Latency |
6.0 ms fixed latency architecture |
||||
|
Input equalizer |
Three layers (PEQ, raised cosine, shelving), 32 filters each + group filters, up to 256 filters total |
||||
|
Output equalizer |
16 fully parametric filters per channel, IIR: peaking, hi/lo-shelving, hi/lo-pass, band-pass, band-stop, all-pass. Custom FIR up to 384 taps @ 48 or 96 kHz |
||||
|
Crossover |
Butterworth, Linkwitz-Riley, Bessel: 6 dB/oct to 48 dB/oct (IIR), linear phase (FIR), hybrid (FIR-IIR) |
||||
|
Delay |
up to 4 s on input section; up to 32 ms per output, sample-by-sample stepping |
||||
|
Limiters |
Power limiter, TruePower™, RMS voltage, RMS current + Peak limiter |
||||
|
Damping control |
Active DampingControl™ |
||||
|

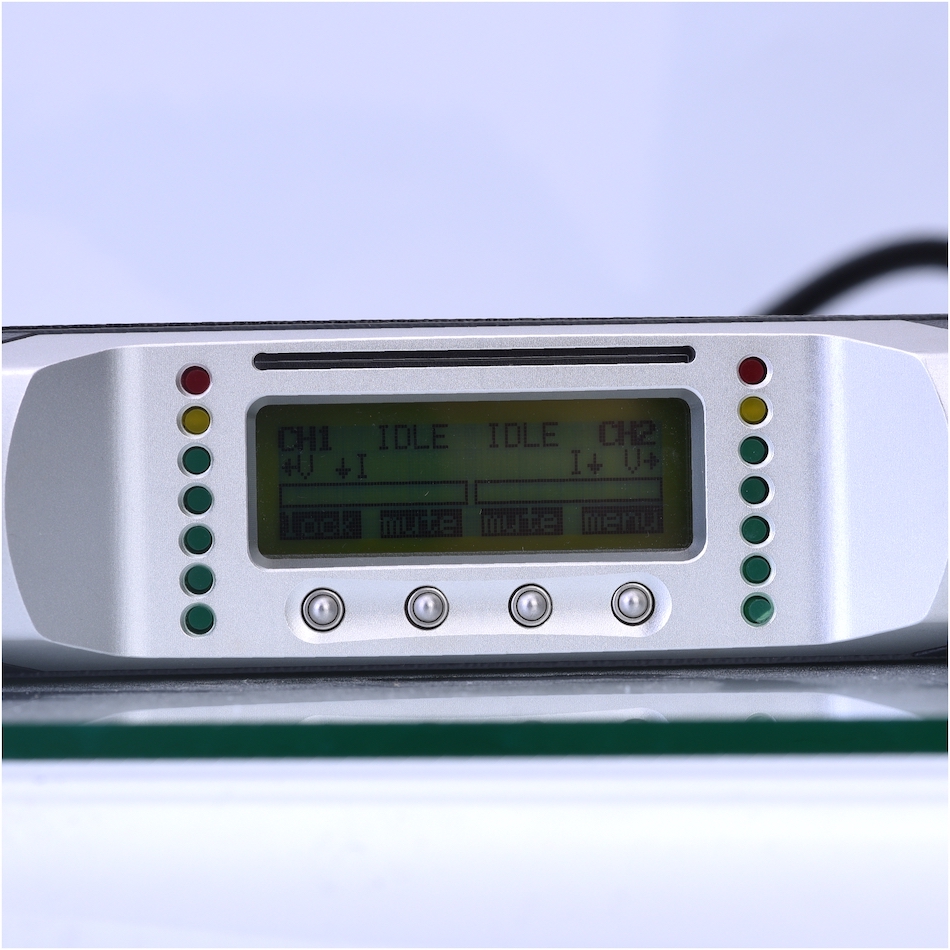

Indicators and Controllers |
2 x LED bar - Signal level and over-temperature protection 4 x Push-button - Setting operating parameters 1 x Display - Settings and monitoring 1 x Power switch - |
||||
|
AC main |
1 x IEC C20 connector - 20 A max (region-specific power cord provided) |
||||
|

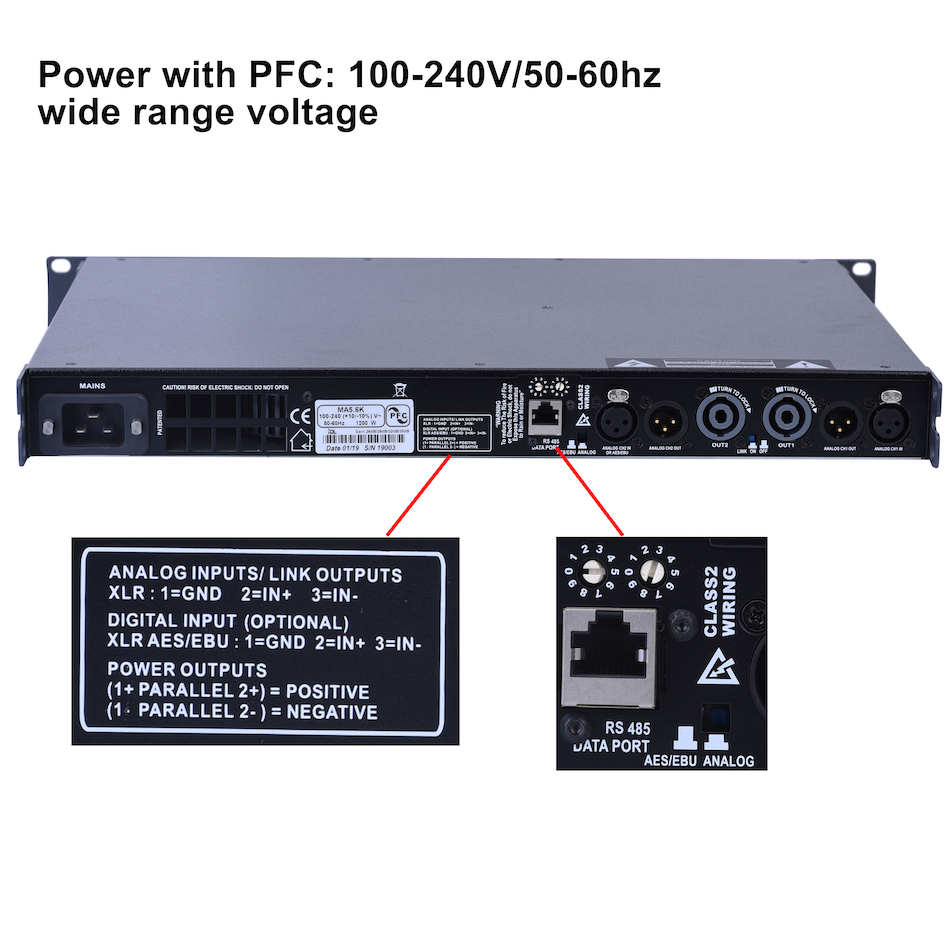

Audio signal input |
2 x XLR - Signal input 1 x Analog/Digital input - Switchable Analog line/AES3 digital input on channel 2 |
||||
|
Auxiliary voltage |
1 x 2 pin Phoenix MC 1.5/2-ST-3.81 - External voltage connector (DSP version only) |
||||
|
Audio out (link through) |
2 x XLR - Signal output (link through) |
||||
|
Loudspeakers |
2 x speakON - Neutrik NL4MD |
||||
|
Network/data |
2 x Rj45 socket - Ethernet + AESOP connection (DSP+AESOP version only) 2 x Rj45 socket - Ethernet + AESOP connection (DSP+AESOP version only) 1 x Rj45 socket - RS485 data connection (non-DSP version) |
||||
|
Indicators and Controllers |
1 x Push-button - Link channel pair 1 x Push-button - Toggle ANALOG input/AES3 input on selected connector |
||||
|
Dimensions (L x H x W) |
483 mm x 44.45 mm x 380 mm (19.0 in x 1.8 in x 15.0 in) |
||||
|
Weight |
9.1Kgs |
||||
