Brand Name:Prokustk
Origin:CN(Origin)
Model Number:AM260HV+DSP L3
Bundle:Bundle 1
Type:Power Amplifiers
Certification:CE
Channel:2
Voltage:100V-240V Wide Voltage
DSP:Yes
RMS Power at 8ohm Per channel:700W
Amplifier module+ DSP + Plate size:310 x 160 x58mmmm

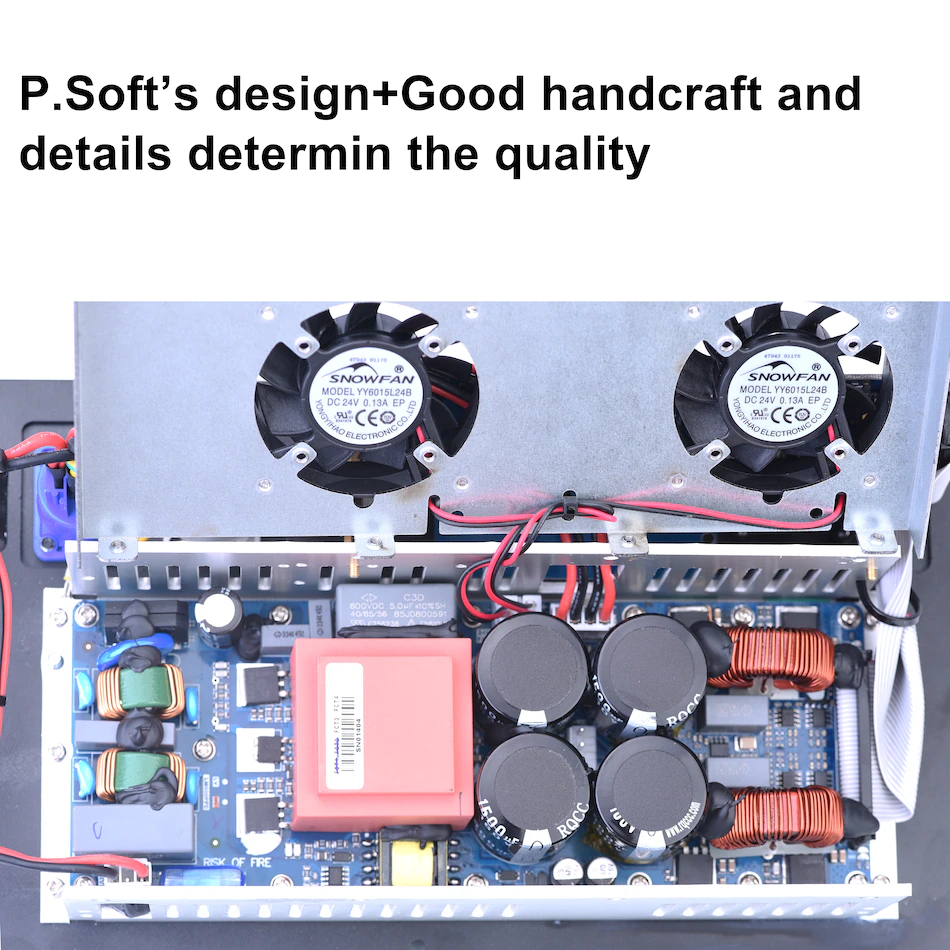

Similar to power* soft 90%, using almost exactly the same materials.

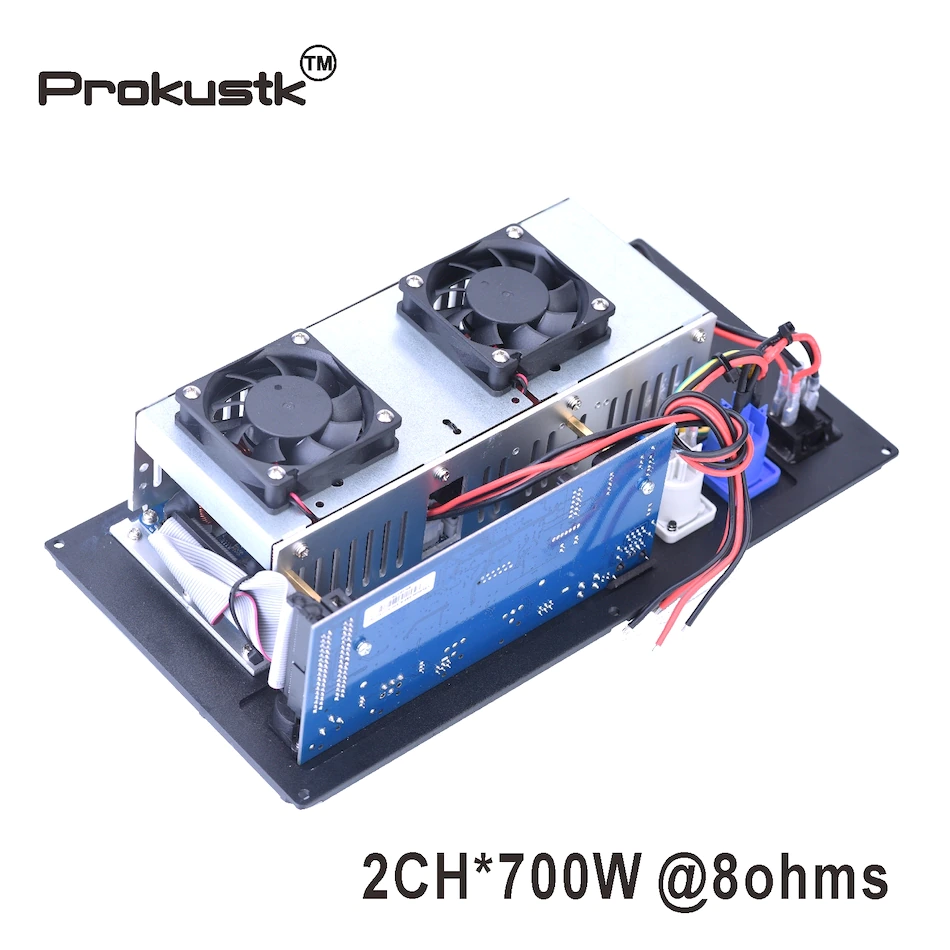

2 Channel 700W@ 8ohm Professional Power Amplifier module plate DSP Line Array powered subwoofer module Prokustk AM260HV
Features
The AM260HV is a compact and powerful switching mode amplifier module aimed to drive high impedance loads, capable to deliver 700 W @ 8 Ω per channel or 1400 W @ 16 Ω in bridge mode.
It provides high clean output power thanks to the last generation compact PFC power supply, guaranteeing reliability and consistency in all operating conditions and low power consumption.
Efficiency and robustness, always and everywhere
· Switching mode technology grants reliability, robustness and attention to detail. Accurate design of the Pulse Width Modulation block offers maximum performance, high predictability and immunity from intermodulation artifacts.
Maximize performances, minimize consumption
· automatic mains voltage selector for world wide operation;
· latest generation single-stage patented Power Factor Correction;
· 0.5 W low standby power consumption.
Complete set of protections
· thermal shutdown;
· short circuit and overload protection;
· stationary high frequency protection.
Compactness
· power supply, output stage and connectors are all included in a single, compact, lightweight chassis.

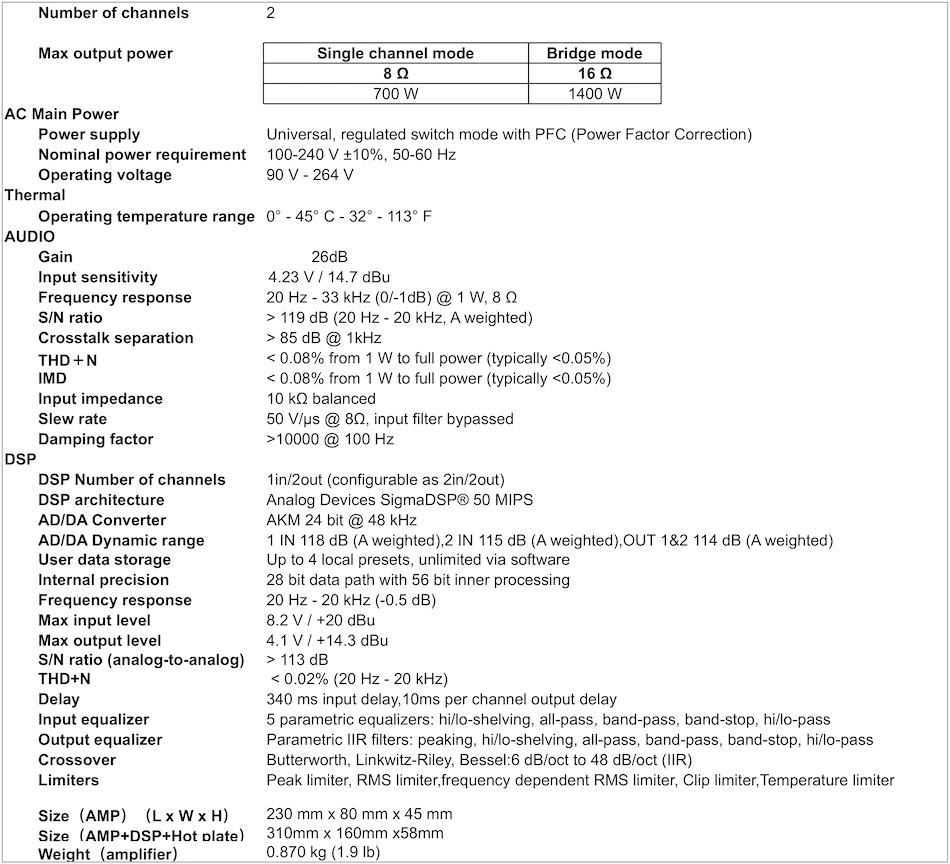

Specification
*Output Power :
Single channel Mode: 700W at 8ohm
Bridge mode : 1400W at 16ohm
*Power supply: 100-240 V ±10%, 50-60 Hz
*Operating temperature range 0° - 45° C - 32° - 113° F
*Gain:26dB
*Input sensitivity 4.23 V / 14.7 dBu
*Frequency response 20 Hz - 33 kHz (0/-1dB) @ 1 W, 8 Ω
*S/N ratio> 119 dB (20 Hz - 20 kHz, A weighted)
*Crosstalk separation > 85 dB @ 1kHz
*THD＋N < 0.08% from 1 W to full power (typically <0.05%)
*IMD < 0.08% from 1 W to full power (typically <0.05%)
*Input impedance:10 kΩ balanced
*Slew rate 50 V/μs @ 8Ω, input filter bypassed
*Damping factor >10000 @ 100 Hz
DSP
*DSP Number of channels: 1in/2out
*DSP architecture : Analog Devices SigmaDSP® 50 MIPS
* AD/DA Converter : AKM 24 bit @ 48 kHz
*AD/DA Dynamic range: 1 IN 118dB (A weighted),2 IN 115dB(A weighted),OUT 1&2 114dB(A weighted)
*User data storage :Up to 4 local presets, unlimited via software
*Internal precision: 28 bit data path with 56 bit inner processing
*Frequency response :20 Hz - 20 kHz (-0.5 dB)
*Max input level :8.2 V / +20 dBu
*Max output level :4.1 V / +14.3 dBu
*S/N ratio(analog to analog) > 113 dB
*THD+N < 0.02% (20 Hz - 20 kHz)
*Delay: 340 ms input delay,10ms per channel output delay
*Input equalizer: 5 parametric equalizers: hi/lo-shelving, all-pass, band-pass, band-stop, hi/lo-pass
*Output equalizer:Parametric IIR filters: hi/lo-shelving,all-pass,band-pass,band-stop,hi/lo-pass
Crossover :Butterworth, Linkwitz-Riley, Bessel:6 dB/oct to 48 dB/oct (IIR)
*Limiters :Peak limiter , RMS limiter, Frequency dependent RMS limiter, clip limiter, temperature limiter
*Size（AMP+DSP+Hot plate）:（L x W x D） 310 mm x 160 mm x 58 mm
*Weight（amplifier）: 0.87 kg (1.9 lb)
