Bitte mischen Sie bei der Bestellung nicht die Modelle FP10.000Q (4 Kanäle * 1350 W) und FP14.000 (2 Kanäle * 2350 W), da das Produkt teuer ist und der Austausch umständlich ist.
When you place order ,please don't mix the model FP10,000Q(4 channel*1350W) and FP14,000(2 channel*2350W) , the product is expensive and replacing is inconvenience .

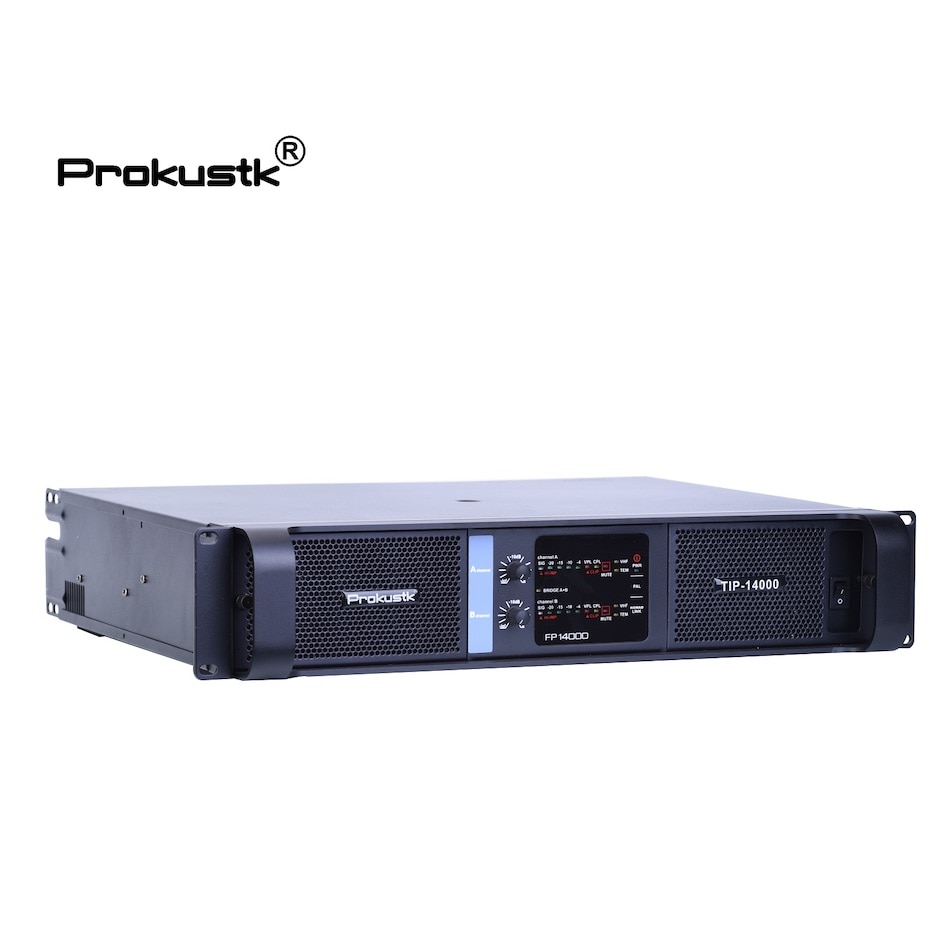

Brand Name:Prokustk
Model Number:TIP14000
Type::Class TD Professional Power Amplifier
Channels:2
Voltage:110v or 220v
Powerat 8ohm:2350W*2CH
Weight:15.5kg
packing size:600*170*560mm
warranty:3 years
Impedance Matching : 4ohms and above.
How to match our amplifier with your speaker ?
TIP14000 suitable for the speaker rated power around 1500W-1600W @8ohm.
Suggest match:
Double 18inch subwoofer or Full range speaker
Does your unit with warranty ?
Yes, it's with 3-year warranty .
Do I need to pay import duties ?
We have warehouse in China ,USA and Spain, for the goods ship from USA and Spain , you don't need to pay import duties because it just like domestic shipping.
All the other countries , it depend on your local countries import policy , our price don't include the import duties .
Specification
Output Power (20-20kHz, 1W with 1 khz):
8ΩStereo Power(RMS): 2350WX2CH
4ΩStereo Power(RMS): 4400WX2CH
2ΩStereo Power(RMS): 7000WX2CH
8ΩBridged Power(RMS): 8800W
4ΩBridged Power(RMS): 14000W
Frequency Response(+o/-0.3dB,1W/8Ω) : 20 Hz - 34 kHz
THD 20 Hz - 20 kHz for 1 W <0.1%
Signal-to-Noise Ratio >112 dBA
Channel separation (Crosstalk) at 1 kHz >70 dB

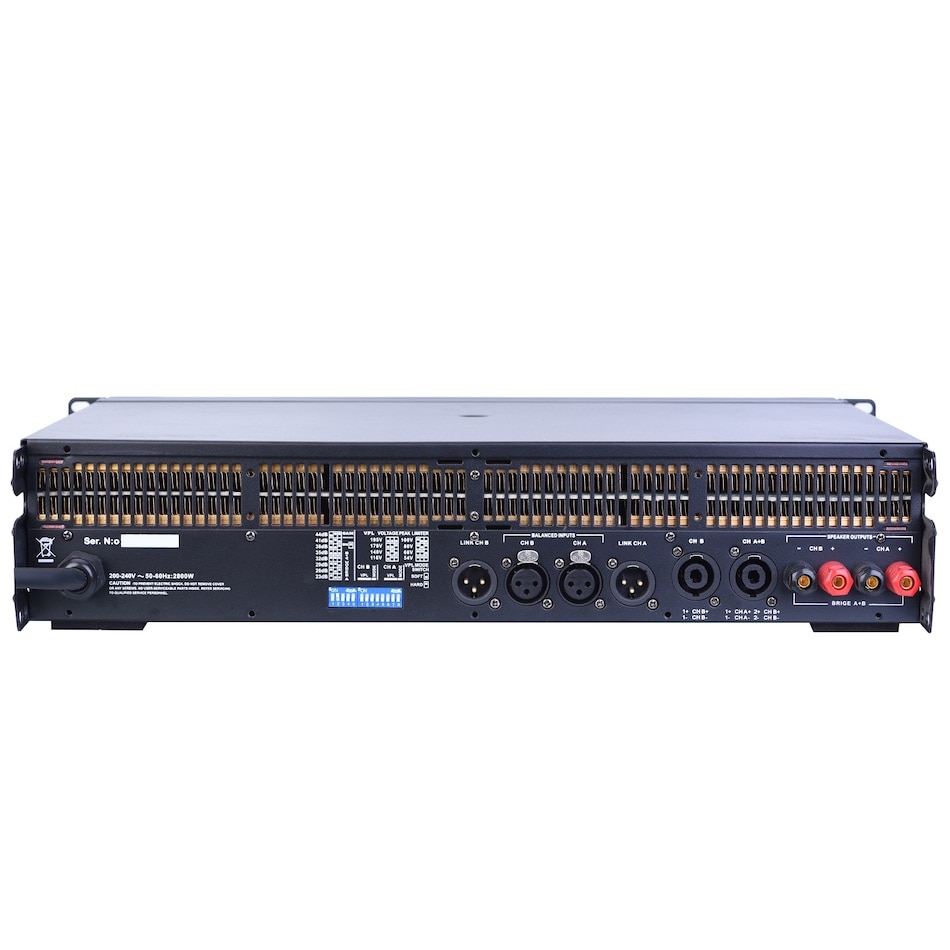

Input Connectors (per channel)
3-pin XLR, electronically balanced
Output Connectors (per channel)
Binding Posts 2-pole
Class : TD
TourClass Protection
ACL,IGM, AutoRamp, short circuit, DC voltage, turn-on/off transient, current inrush, sub/ultrasonic input
Operating voltage: 230 V / 115 V nominal
130-265 V / 65-135 V selectable
Voltage Gain(dB)
23, 26, 29, 32, 35, 38, 41, 44 dB selectable
Input impedance 20 kOhm
Level adjustment (per ch.)
Front-panel potentiometer, 31 position detented from -inf to 0 dB
Dimensions (W×H×D) 483×88×396mm
Packing dimension 560×180×500mm
Gross weight(kg) 15.5
