Brand Name:Prokustk
Origin:CN(Origin)
Model Number:AM3004+DSP L3
Type:Power Amplifiers
Certification:CE
Channel:4
Power supply:100-240V wide voltage
DSP:Yes
Amplifier module+DSP + plate size:390 x 211 x 80 mm
Similar to power* soft 90%, using almost exactly the same materials.

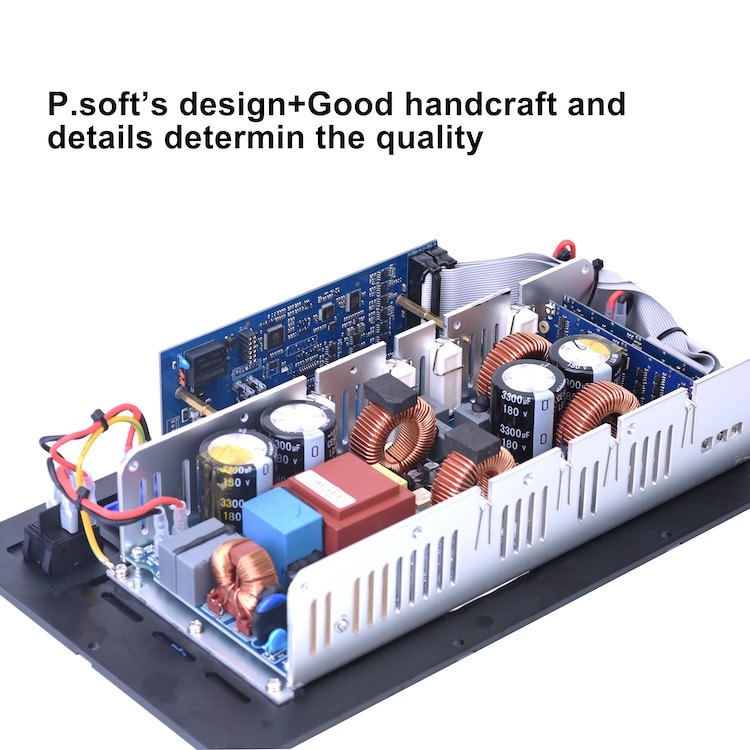

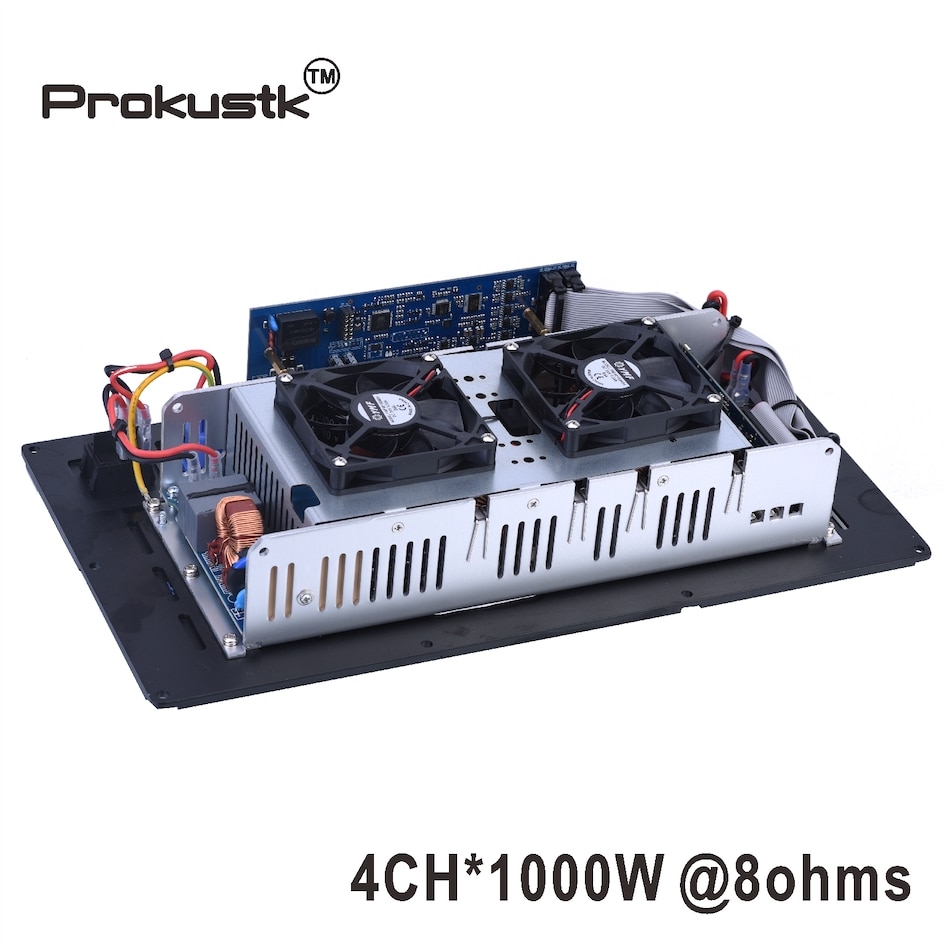

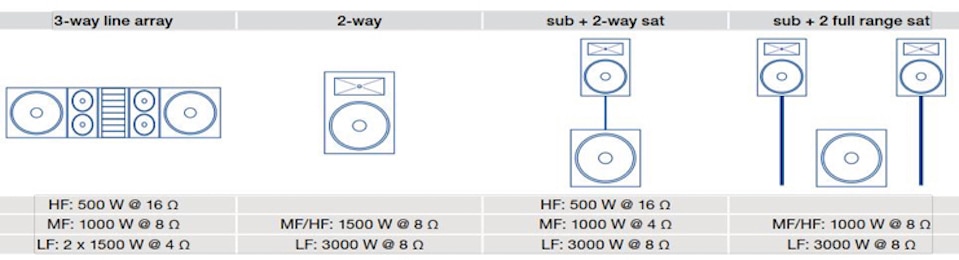

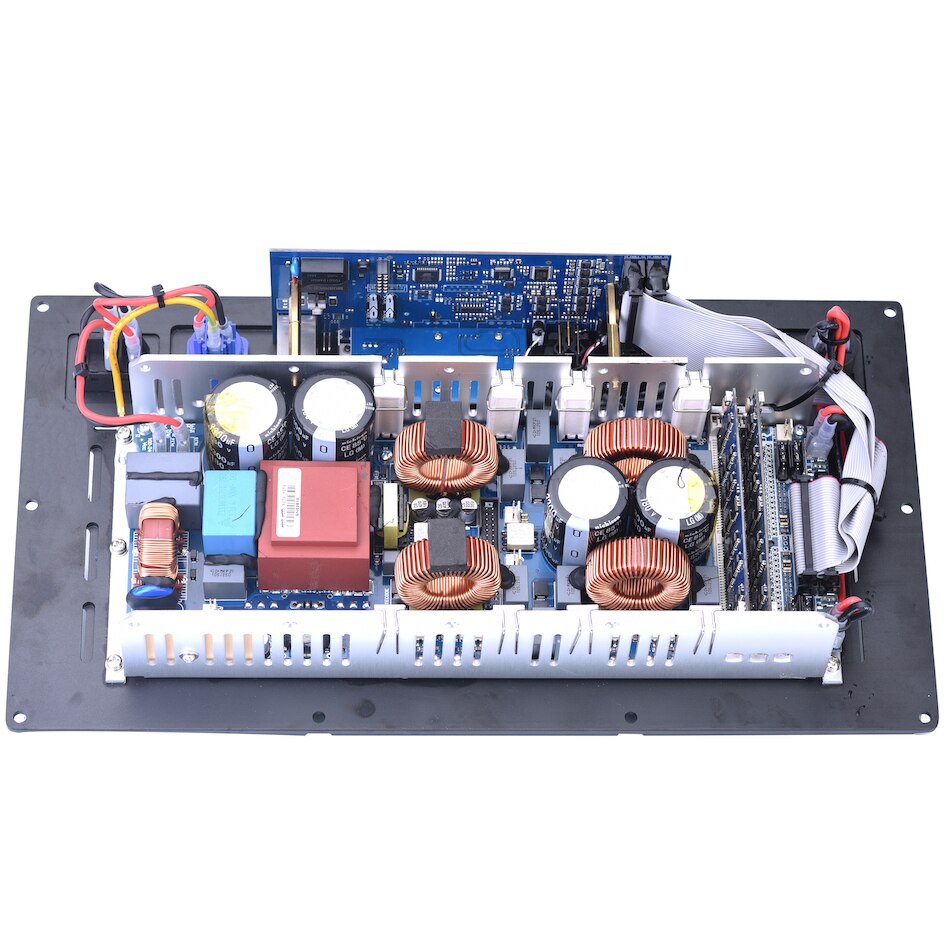

The AM3004 is an amplifier module featuring 4 output channel specifically designed for multi-way loudspeakers and asymmetric loads. The highly compact design, integrating all 4 channel and the power supply in a single chassis , makes the AM3004 a unique product. Capable of amazing sonic performance thanks to the 6-layers PCB, the AM3004 features a new power supply design equipped with PFC and featuring smart Rails management , to grant incredible efficiency . It is the most ideal platform for 3-way active systems.
Features

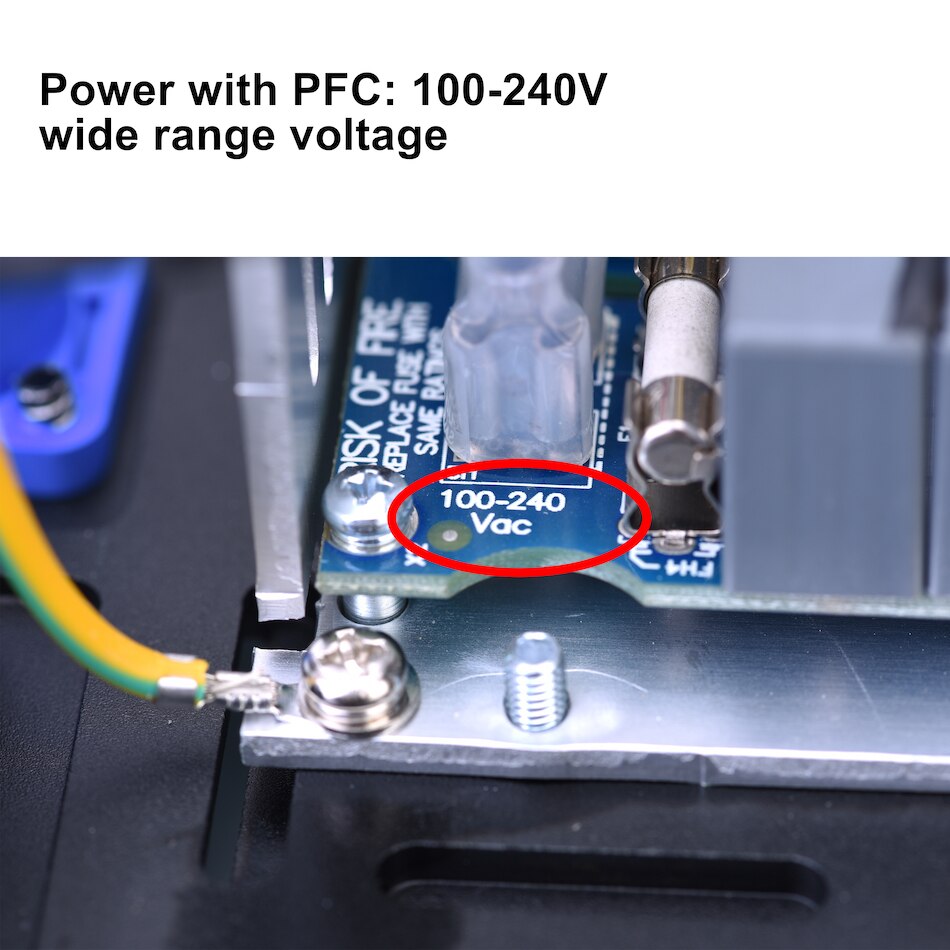

* Power factor correction(PFC): for worldwide operation and error proof connection to mains voltage (up to 400VAC tolerant)
* Smart rails management (SRM) for reduced heat dissipation and improve efficiency
*High efficiency / low consumption universal power supply
* Fixed frequency switch mode output stage for highest grade audio accuracy
* Optional DSP board
* High performances ethernet based digital audio routing and control optional board
* Flexibility: available in "single unit" version to maximize compactness or with separated power supply and amplification stage to ease mechanical integration
* Bypass line outputs for external active/passive filters
* Comprehensive and smart protection features : Thermal , over-current,non audio signals
*Thermal protections (power limiting - thermal shutdown)
* short-circuit/ overload output protection
* Clip limiter
* High frequency protection
* Auxiliary output voltage (+-12V regulated , 500mA max)
* mute command
* Temperature controlled internal Fan and outputs
Specification
Number of channel : 4
Output power :
4ohm output : 2000 W
8ohm output : 1000 W
16ohm output: 600 W
8ohm Bridge mode: 3000 W
16ohm bridge output : 2000W
Operate temperature : 0-45 C
Frequency response : 20-20Khz at 1W 8ohm
S/N ratio : Above 110 DB
Crosstalk separation : Above 70 DB
THD + N : Less than 0.5% from 1W to full power(typically less than 0.01%)
IMD : Less than 0.02% from 1W to full power(typically less than 0.005%)
Input impedance : 10K ohm balanced
Slew rate : 50V/us at 8ohm, input filter by passed
Damping factor : Above 5000 at 100hz

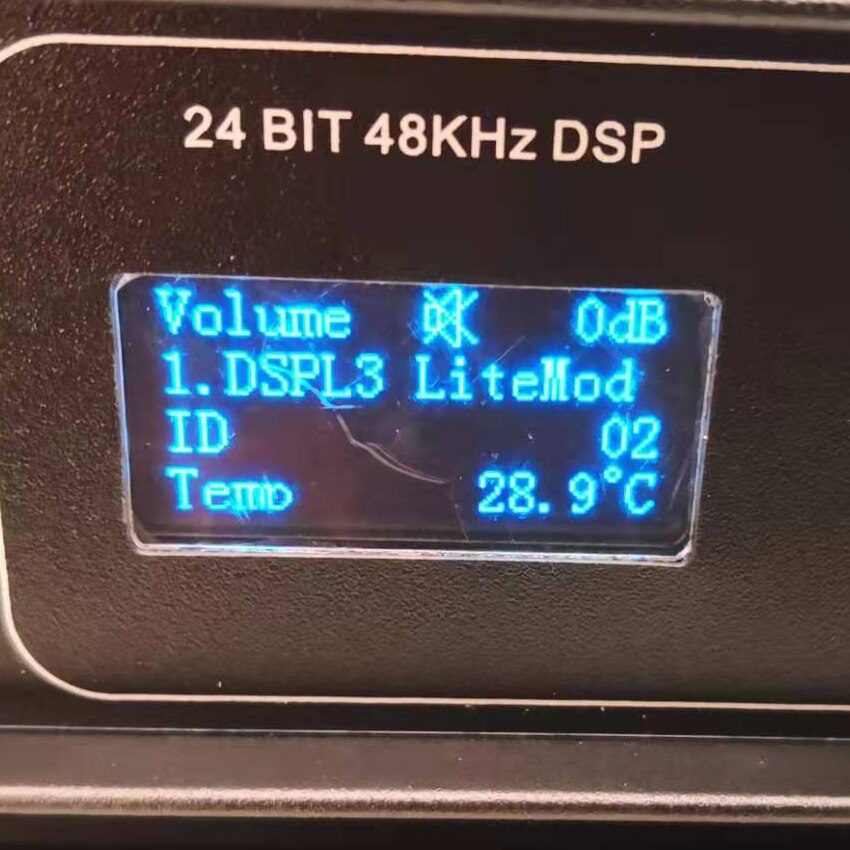

DSP
Number of channels: 2in/3out (configurable as 1in/3out)
DSP Architecture: Analog Devices SigmaDSP 50 MIPS
AD/DA converter : AKM 24 bit @48khz
AD/DA Dynamic range : 1 IN 118dB (A weighted),2 IN 115dB(A weighted),OUT 1&2 114dB(A weighted), OUT 3 102dB( A weighted)
User data storage : Up to 4 local presets, unlimited via software
Internal Precision : 28 bit data path with 56 bit inner processing
Frequency Response : 20Hz -20KHz
Max input level : 8.2V/ +-2- dBu
Max output level : 4.1V / +- 14.3 dBu
S/N ratio: Above 113dB
THD+N: Less than 0.02% (20-20khz)
Delay: 340ms input delay, 10ms per channel output delay
Input equalizer: 5 parametric equalizers: Hi/lo-shelving, All-pass, band-pass , band-stop, hi/lo pass
Output equalizer : Parametric IIR filters: Peaking, hi/lo shelving, all-pass, band-pass, band-stop, hi/lo pass
Crossover: Butterworth, linkwitz-Riley, Bessel :6dB/oct to 48dB/oct (IIR)
Limiters: Peak limiter,RMS limiter,Frequency dependent RMS limiter,Clip limiter,Temperature limiter

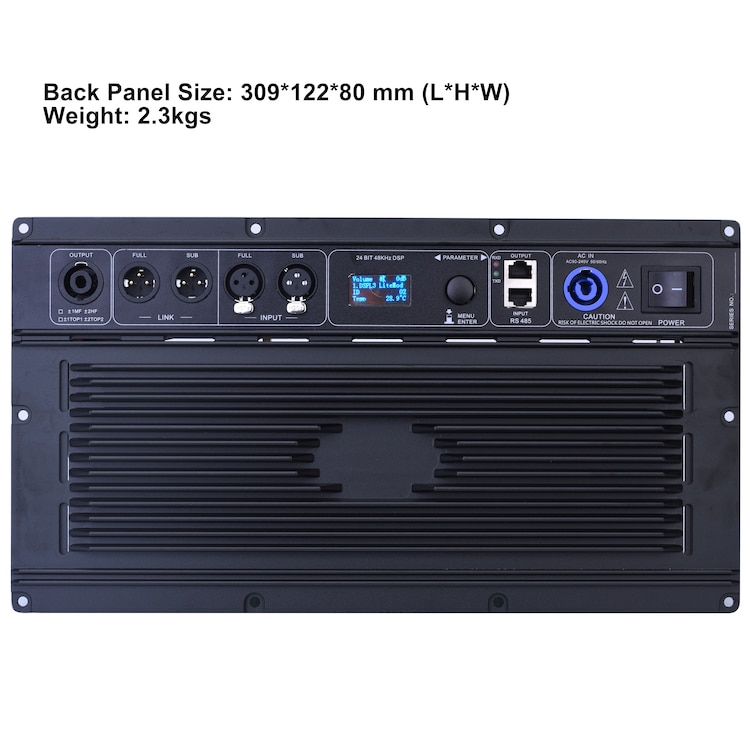

Size AMP: 309*122*80 mm L*W*H
Size AMP+DSP+hot plate: 309*211*80 mm L*W*H
Weight AMP: 2.4kgs
