Brand Name:Prokustk
Origin:CN(Origin)
Model Number:MA68K
Bundle:Bundle 1
Type:Power Amplifiers
Certification:CE
Type::Professional Power Amplifier
Channels:4
transistor:Field Effect Transistor
voltage: 110 to 240V wide voltage
power: 1000W at 8ohms
weight: 9 Kgs
packing size:59*48*9cm
warranty:3 years
With 5,000W across four channels in a single rack space unit at a mere 8 kg weight, the MA68K is equally versatile in touring and permanently installed racks.Optimized for mid-sized sound systems and 4Ω loads, it is a fantastic value, practically as well as commercially.
Power Supply :
· Advanced switch-mode power supply technology for high performance and compact size
· Fixed frequency switch mode output

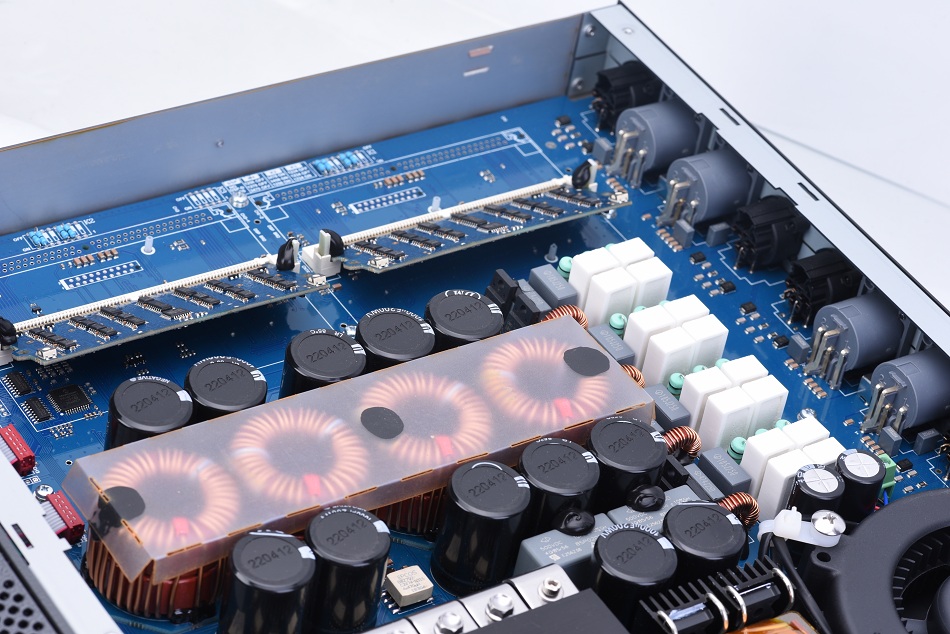

· Patented output filter with ripple cancellation network
· Wide range AC power supply from 110V~240V
Protections
· Ac protection: shut down power supply when AC mains voltage is outside operating range
· Clip limiter: prevents severely clipped waveforms from reaching loudspeakers, while still maintaining full peak power output
· DC protection: protects against infrasonic signal at the outputs
· VHF protections: protects the loudspeakers against non audible, strong, non musical high frequency signals
· Short circuit protection: protects the amplifier from short circuit or other stressful events for the output circuits with automatic protection reset
· Long term limiter: protects the loudspeaker against steady long term rms (non audio) signals reducing maximum output
· Thermal protection: output stages operating temperature up to 75 °C (167 °F)
· Temperature controlled continous variable speed fan, front to back airflow
General :

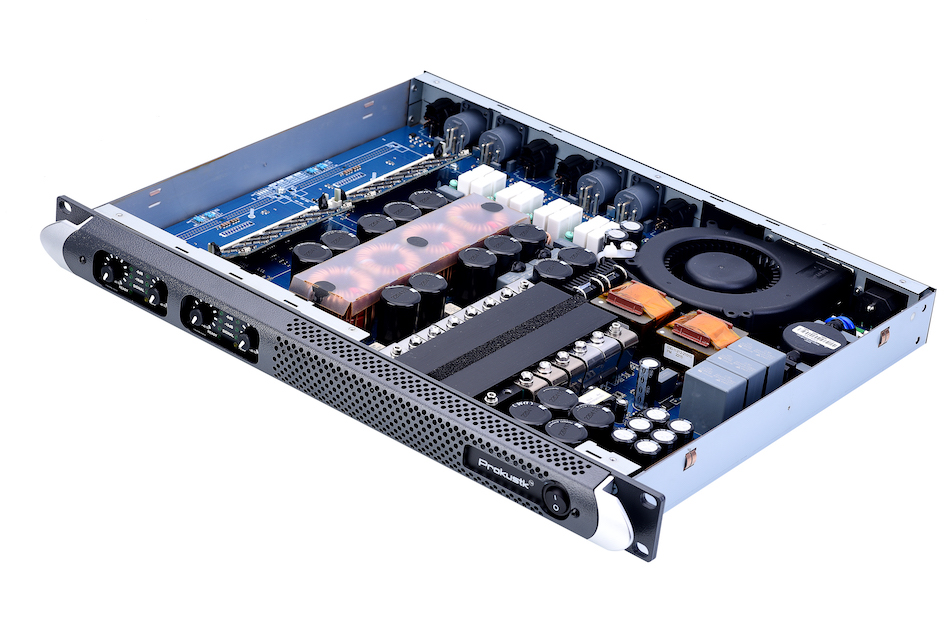

· Compact size - all models only 1U for reduced rack cost and space
· Light weight - all models only 8 kg for easier racking and shipping

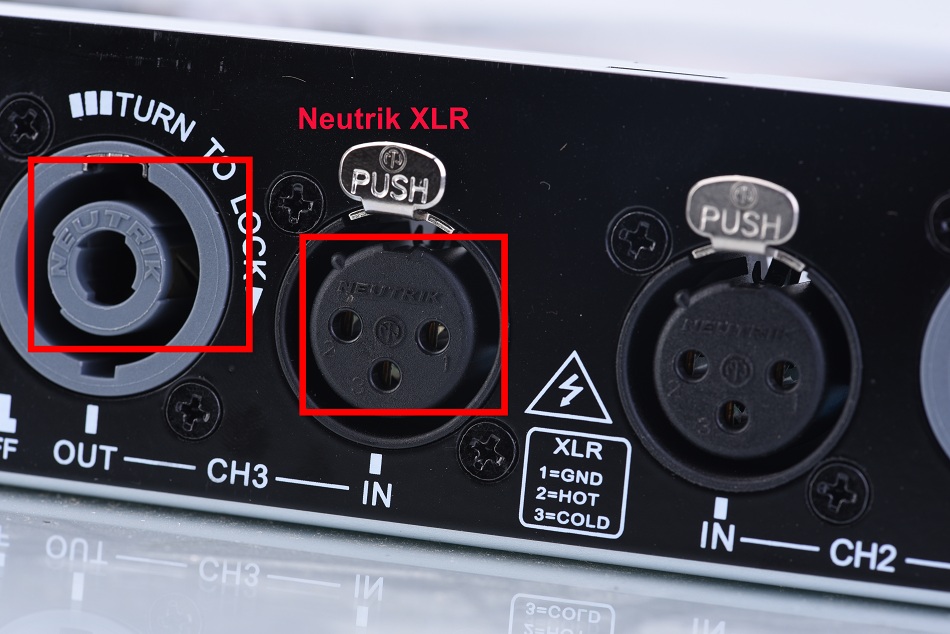

· Neutrik XLR balanced inputs with loop thru XLR and Speakon outputs connectors
· Recessed stepped attenuators

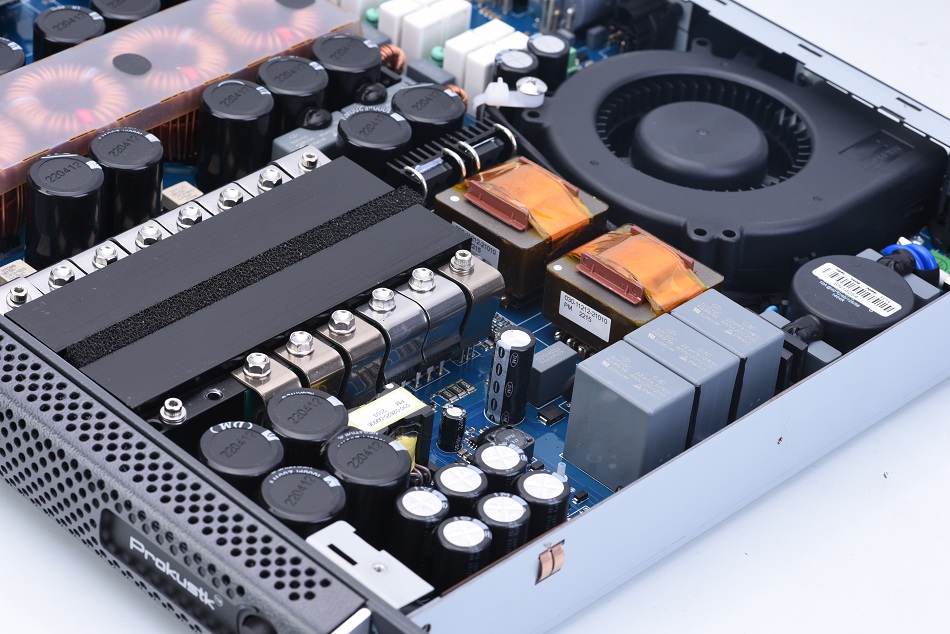

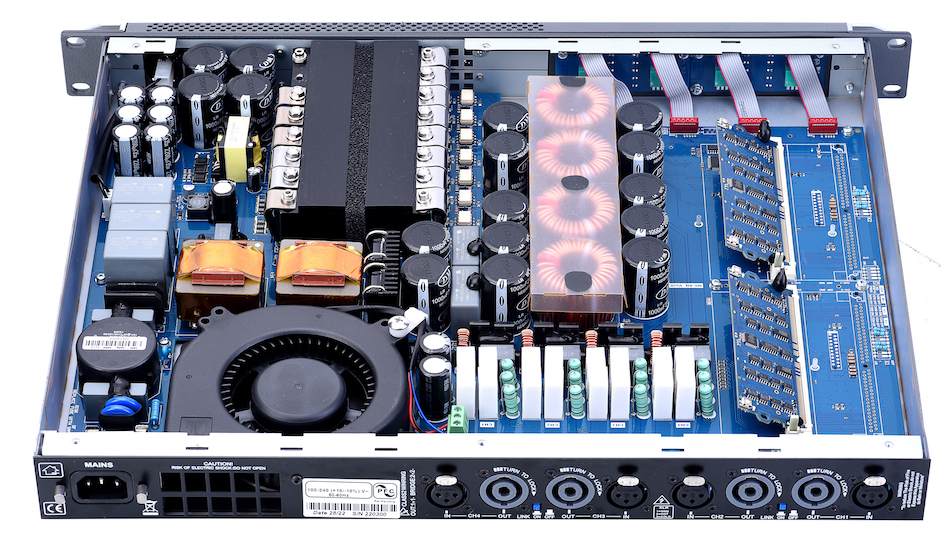

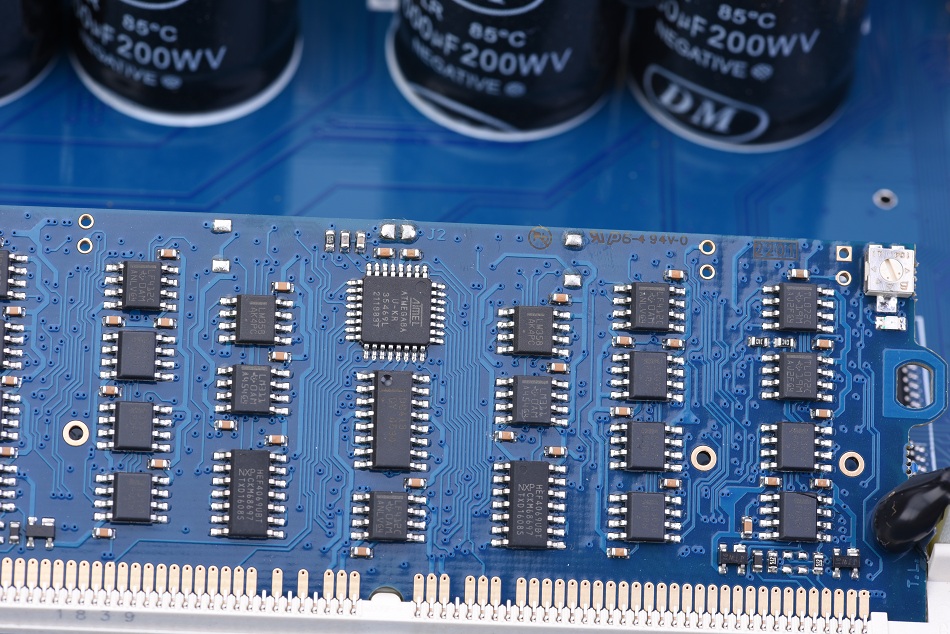

· Modular construction
Specification:
Number of channels: 4
Output power (RMS):
4ohm Stereo output : 1250W
8ohm Stereo output: 1000W
8ohm Bridge output: 2500W
Operate temperature :0° - 45° C - 32° - 113° F
Gain:32dB, 30dB, 28dB, 26dB, 24dB, 22dB, 20dB, 18dB, 14dB, 4dB, -∞, user selectable
Input sensitivity: 1.94V / 8 dBu
Max input level : 6V / 17.8 dBu
Frequency response : 20-20Khz @ 1W,8ohm
S/N ration: Above 110DB
Crosstalk separation : Above 70 DB
THD+N : Less than 0.05% @ 1/2 full power
IMD: Less than 0.02%
Input impedance: 10Kohm balanced
Slew rate : 50V/us @ 8ohm, input filter by passed
Damping Factor : Above 5000 @ 100 Hz

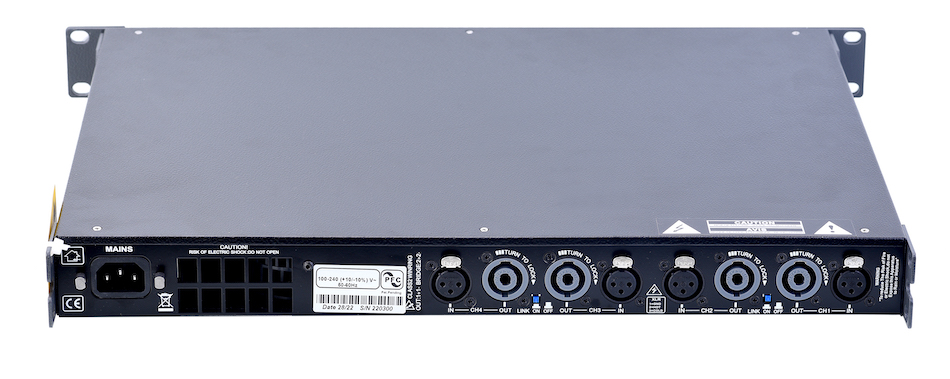

Rear Panel:
AC: 1X IEC C14 connector - 15A max (Regional Power cord provided, Please specify your country's power plug when placing order)
Input: 4 X XLR signal input
Loudspeakers: 4X Speakon - Neutrik NL4MD
Indicators and controllers : 2XPush-button - Link channel Pair
Dimension of the unit: 483 * 358 * 45mm
Weight of the unit : 7.4 kgs
Power consumption |
115 V |
230 V |
||
Non-load |
64 W |
0.6 A |
64 W |
0.51 A |
1/8 of max output power @ 4 Ω |
905 W |
11.6 A |
905 W |
5.8 A |
1/4 of max output power @ 4 Ω |
1772 W |
22.2 A |
1772 W |
11.1 A |
Thermal dissipation |
115 V |
230 V |
||
Non-load |
218 BTU/h |
54.9 kcal/h |
218 BTU/h |
54.9 kcal/h |
1/8 of max output power @ 4 Ω |
955 BTU/h |
240.7 kcal/h |
955 BTU/h |
240.7 kcal/h |
1/4 of max output power @ 4 Ω |
1781 BTU/h |
448.8 kcal/h |
1781 BTU/h |
448.8 kcal/ |
