Bitte mischen Sie bei der Bestellung nicht die Modelle FP10.000Q (4 Kanäle * 1350 W) und FP14.000 (2 Kanäle * 2350 W), da das Produkt teuer ist und der Austausch umständlich ist.
When you place order ,please don't mix the model FP10,000Q(4 channel*1350W) and FP14,000(2 channel*2350W) , the product is expensive and replacing is inconvenience .

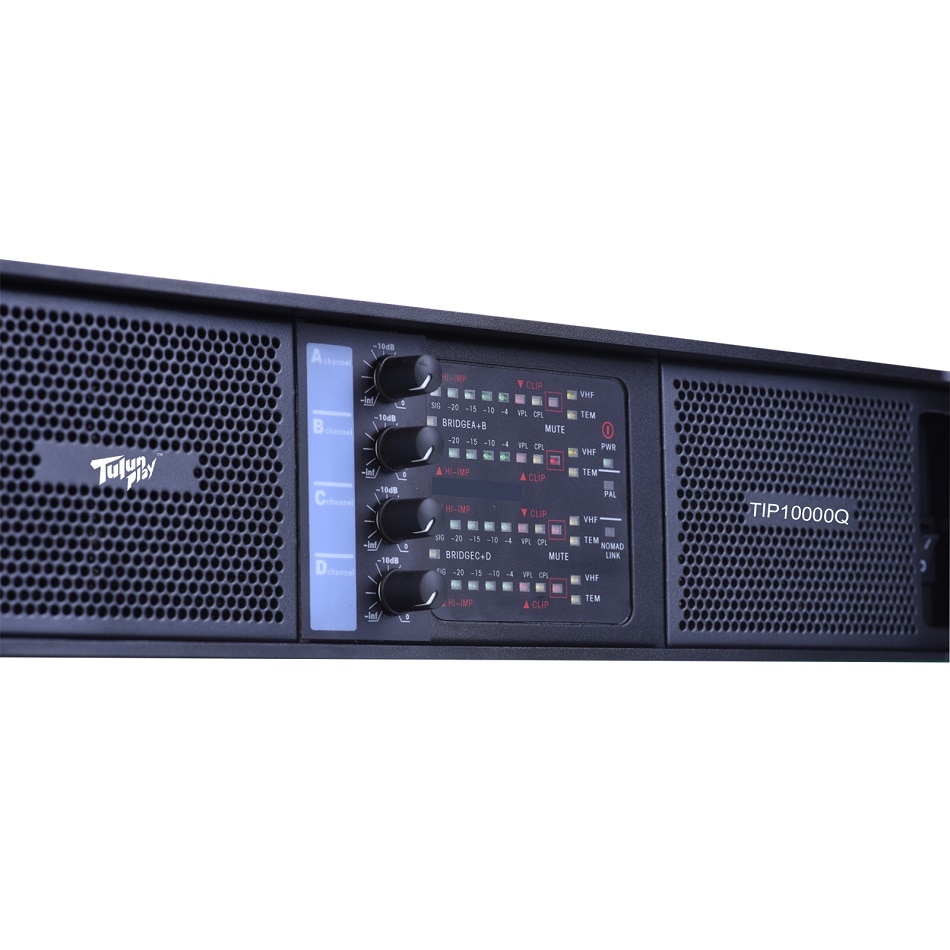

Brand Name:Prokustk / Tulun Play
Origin:CN(Origin)
Model Number:TIP10000q
Bundle:Bundle 1
Type:Power Amplifiers
Certification:CE
Type::Professional Power Amplifier
Channels:4

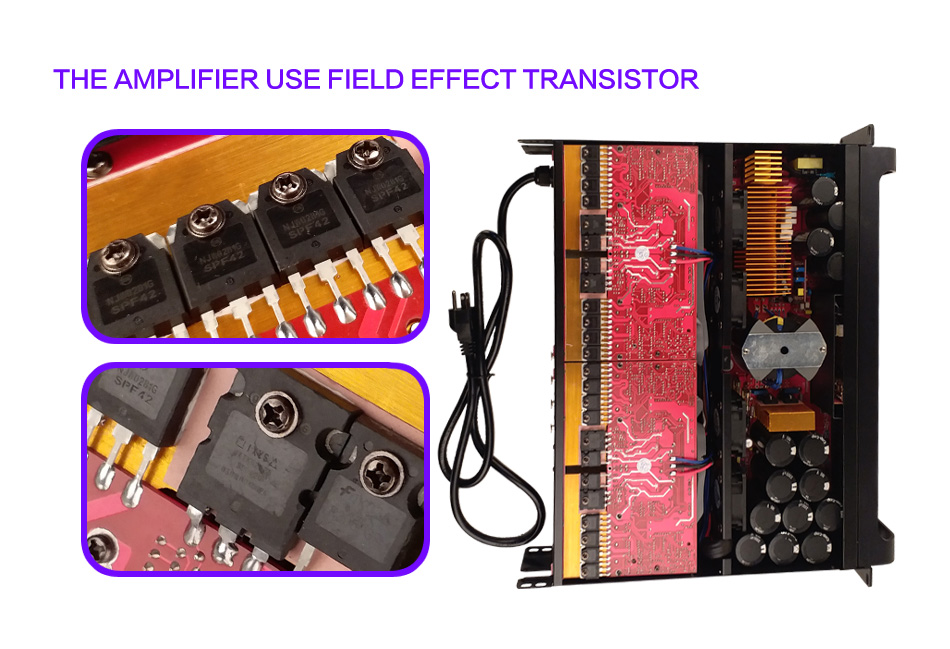

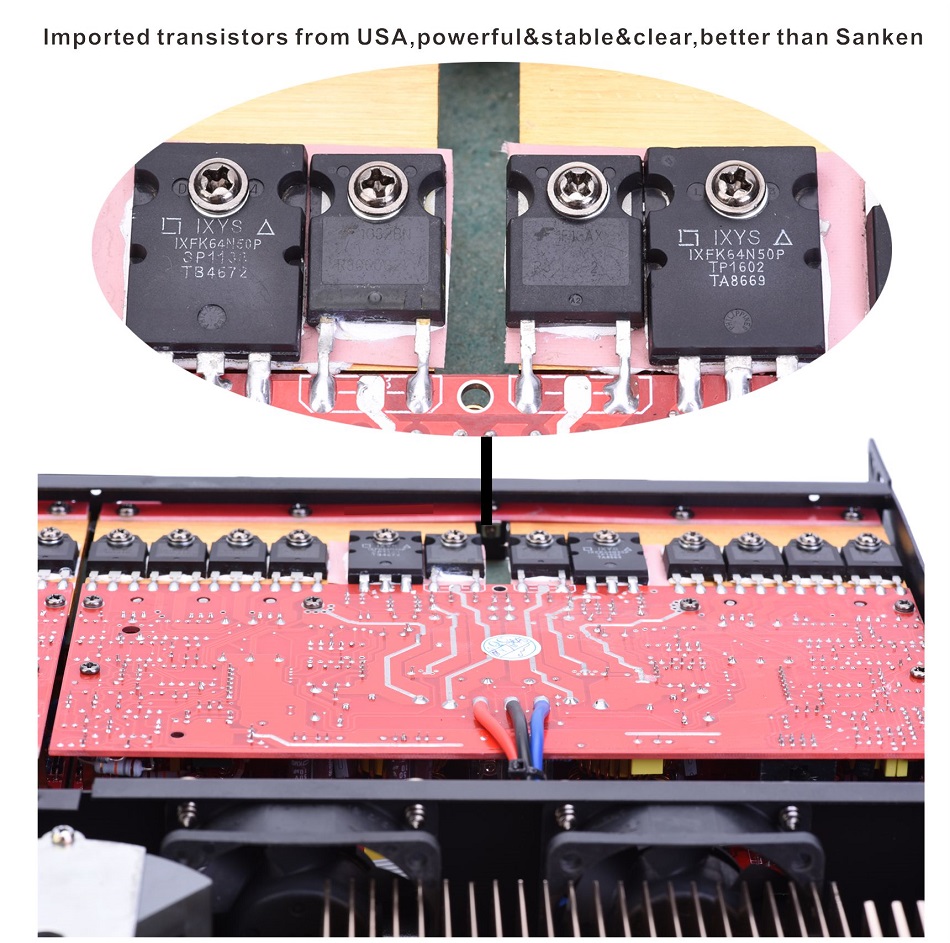

transistor:Field Effect Transistor

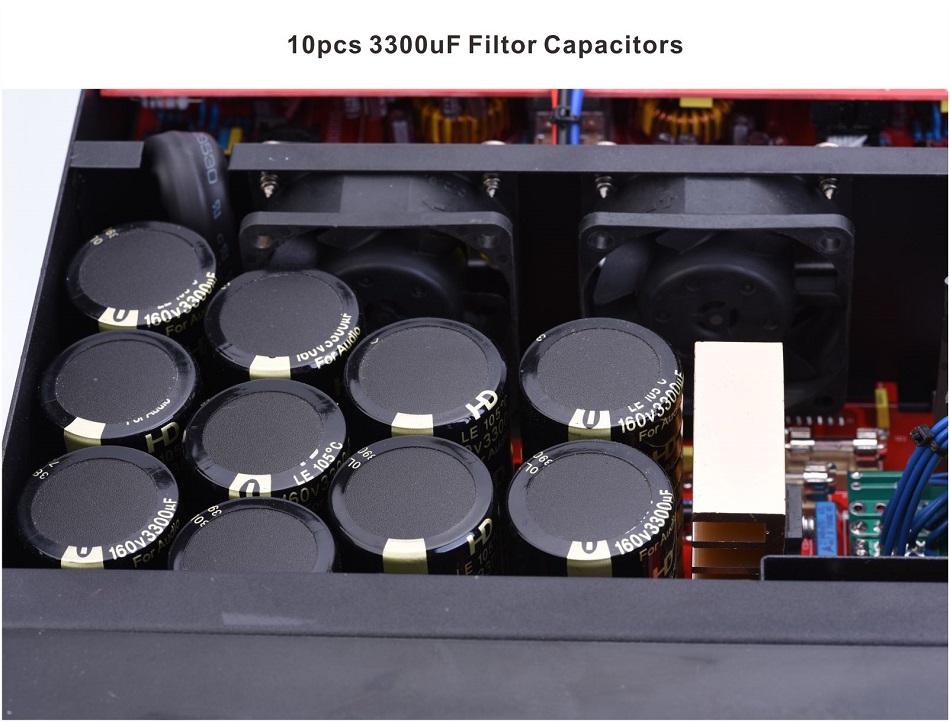

capacitor:3300uf
voltage:110v or 220v
power:1350W*4 at 8ohm
weight:15.5kg
packing size:600*170*560mm
warranty:3 years
Please read below information before buying , It’s important ! Thanks for your time .
Impedance Matching :4ohms and above.
How to match our amplifier with your speaker ?
TIP10000Q suitable for the speaker rated power around 800W@8ohm(Below 800W also ok ).
Suggest match:
- 4pcs Single 18inch or
- 4pcs Double 15inch professional PA speaker .
- 2pcs single 18inch full frequency professional PA speaker + 2pcs single 15inch sub woofer
Does your unit with warranty ?
Yes, it's with 3-year warranty .
Do I need to pay import duties ?
It depend on your local countries import policy , our price don't include the import duties .
|

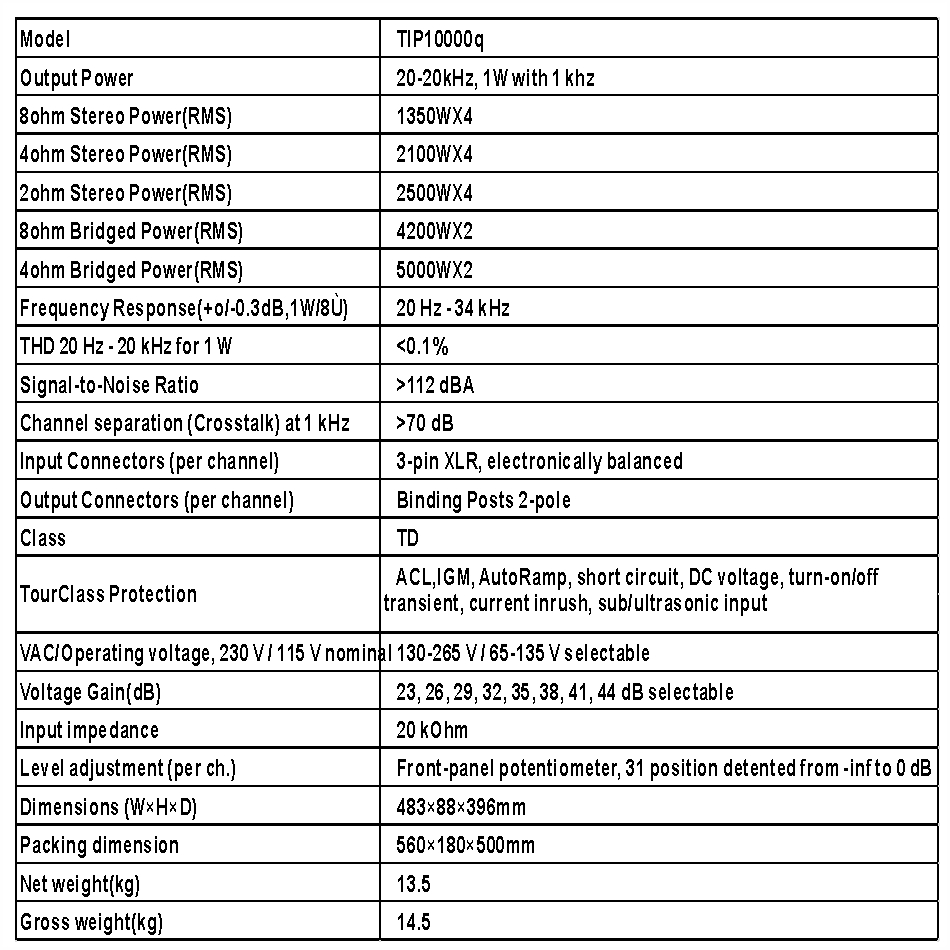

Model |
TIP10000q |
|
Output Power |
20-20kHz, 1W with 1 khz |
|
8ΩStereo Power(RMS) |
1350WX4 |
|
4ΩStereo Power(RMS) |
2100WX4 |
|
2ΩStereo Power(RMS) |
2500WX4 |
|
8ΩBridged Power(RMS) |
4200WX2 |
|
4ΩBridged Power(RMS) |
5000WX2 |
|
Frequency Response(+o/-0.3dB,1W/8Ω) |
20 Hz - 34 kHz |
|
THD 20 Hz - 20 kHz for 1 W |
<0.1% |
|
Signal-to-Noise Ratio |
>112 dBA |
|
Channel separation (Crosstalk) at 1 kHz |
>70 dB |
|
Input Connectors (per channel) |
3-pin XLR, electronically balanced |
|
Output Connectors (per channel) |
Binding Posts 2-pole |
|
Class |
TD |
|
TourClass Protection |
ACL,IGM, AutoRamp, short circuit, DC voltage, turn-on/off transient, current inrush, sub/ultrasonic input |
|
Operating voltage, 230 V / 115 V nominal |
130-265 V / 65-135 V selectable |
|
Voltage Gain(dB) |
23, 26, 29, 32, 35, 38, 41, 44 dB selectable |
|
Input impedance |
20 kOhm |
|
Level adjustment (per ch.) |
Front-panel potentiometer, 31 position detented from -inf to 0 dB |
|
Dimensions (W×H×D) |
483×88×396mm |
|
Packing dimension |
560×180×500mm |
|
Net weight(kg) |
14.5 |
|
Gross weight(kg) |
15.5 |
Our Amplifier is very SAFE:
1. DC protection
2. Short Circuit Protection

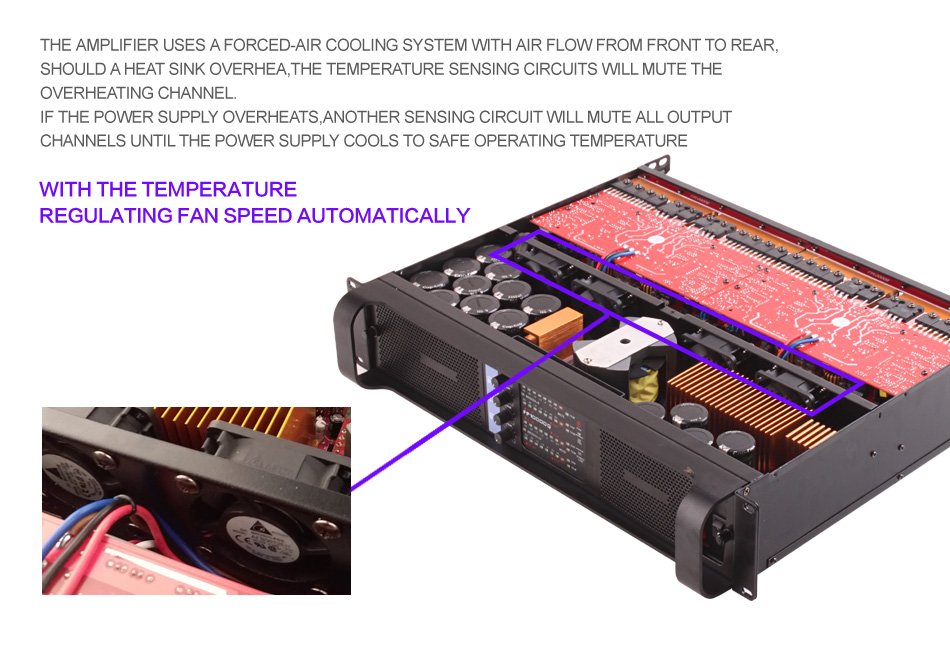

3. Over Heat Protection
4. Input Overload Protection
5. Output Overload Protection
6. Over Voltage Protection
7. Low Voltage Protection
8. Inductor resonance overpressure protection
Almost every part has independent protection circuit.
